Bluetooth Unlock Data Packet Callback
https://api.orbitaiot.com/open/v1/data/unpack/{tid}
1. HTTP Request Method and Example
| POST /open/v1/data/unpack/5135 Host: api.orbitaiot.com Authorization: Bearer eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiJ9.eyJhdWQiOiIzMCIsImp0aSI6IjJjZTBmYmQ3NzEyZTE2ODY0NDdkYTQwZGFkNzZmNjMyOTMxMzY4MWVmMGIyY2M0YzkzMjRmYWE0Mjk5NDczYTJlOWIyOGFjNTZmZGQyOTRjIiwiaWF0IjoxNzc5MDcwMjgyLCJuYmYiOjE3NzkwNzAyODIsImV4cCI6MTc4NzAxOTA4Miwic3ViIjoiMjEiLCJzY29wZXMiOlsiKiJdfQ.oJBnbiw4ZhPepigyeiK-Uu9uf10BH1c55yae7a_KgUazKCpFKXSS2_GRSMerXZE3J1bNX0ZN0PmDLYm4rEmhnbAeC-SKjzG78HS2g043vh0sLziGtw1YKS5Trk_0nElLjfx-zC_9oDLPI-el0vbc_KaTZlLzDSOyVTT7MCUxpHpvjLcerb1ByuVRUr7rcqLz5ITBuio81VMI47r1oTtSQFLkVadTN6egDXY2QLi6iKGpkPVLY2TqW9o9JdOTBwmSsHDw3a8Ok-2oAIvSgg6YN29tp3UNHqIhKs8m2APgUEaVe3bZh-093aarOCqnu9nS_wkHKUdUogzg4wBLu5fGQcfPZWdvaCB5eJn61bub_93hbAlF72NipgmgDx7nM4mJqGjstT7ew7vn78f3_g3dI2AduvYIxG_eUn4__A4XjgRZ_m2YqN_OyFRwfi0upZazII6Vk7WF6pp55Ruj4LUBWOObR3GV0KnBA9paCoPetRKpA5Cch4p8CsjqNrqkeK6QRGcT60AHMuvtVk6NBT7FkHch-vj74foNS_cXpqXrvIFLrRcAYa3vUrHacxQuCMU_ZK0xsBL1oL_uLGB2-UB6_YXCSEJYOlDejtXRlBJnP.... Content-Type: application/json { "bin": "FD890002010195F60000140F000021FD190306A5558D51F4A2FC94A5B2B40185FE"} |
2. Parameter Description
Path Parameter
| Key | Type | Request | Description |
| tid | Int | Y | Device tid |
Headers Parameter
| Key | Type | Request | Vlues |
| Content-Type | String | Y | application/json |
| Authorization | String | Y | Bearer [access_token value] |
Body Parameter
| Name | Type | Required | Description |
| bin | HEX | Y | Hex Data Packet |
3. Return Parameters and Examples
| Name | Type | Description |
| code | Int | |
| data | JSONArray | |
| message | String |
{
"code": 0,
"message": "",
"data": {
"cmd": "devSetOpendoorInfoResponse"
}
}

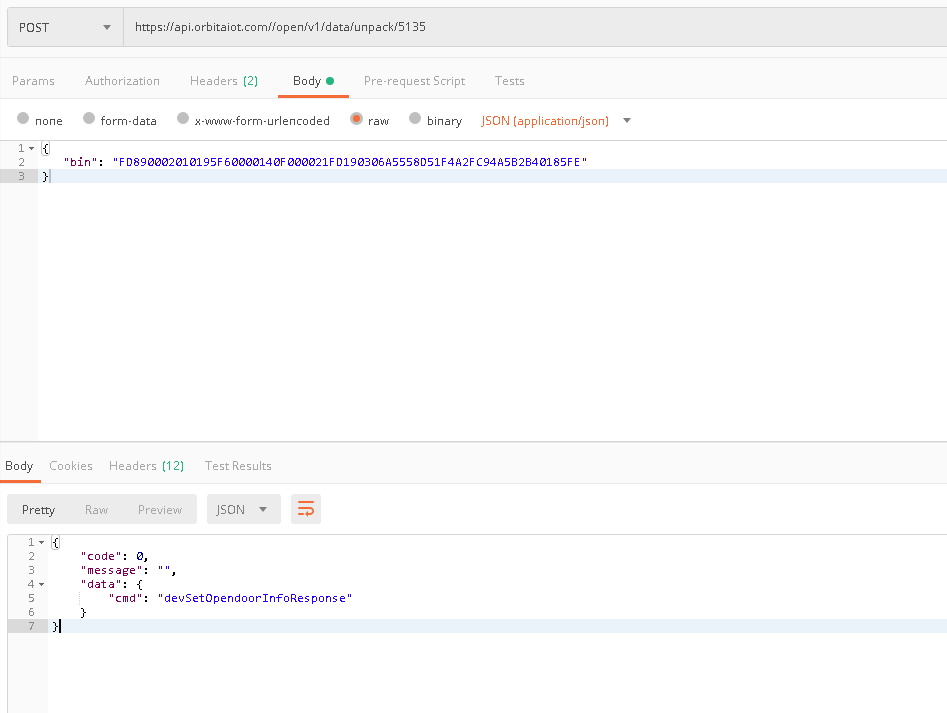

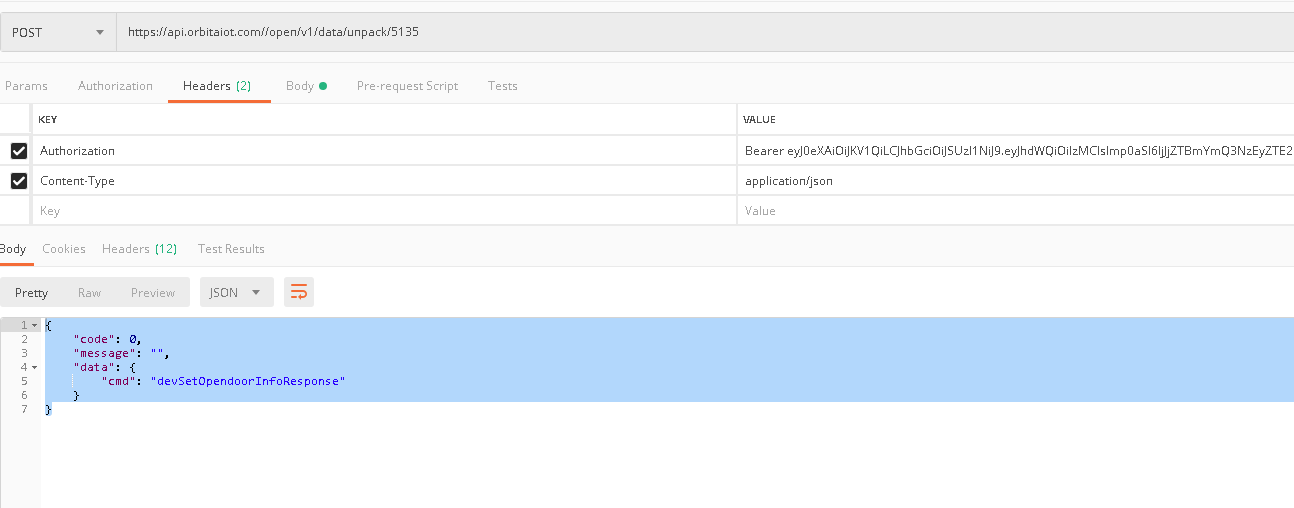

4. Interface Example
